zippy82

Discussion Starter · Oct 6, 2004

got the new turbo today. I was under the impression that the t3/t04e no spacer was required. well turns out i need one as well as longer studs in the manifold. .
My question is can i machine the spacer out of aluminum? 6061 plate stock.ive got a bunch here and it is already 1" thick

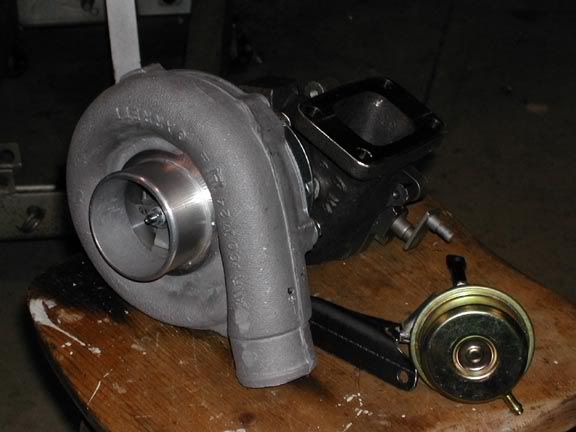

Pics for your [email protected]@king enjoyment T3/T04E 57/63 stage 3

Turbine side on new one much bigger than old one , is bigger than it looks . Old turbo on the left is wimpy

Post Edited (Oct 5, 6:18pm)

See less See more

Save

Status: Not open for further replies.

1 - 7 of 7 Posts

mylesm

· #2 · Oct 6, 2004

Negative, ghost rider.....

Aluminum in the exhaust that close to the motor under those kinds of presure is a no-no......

The melting point of aluminum is much to low to consider using it under those conditions

Save

zippy82

Discussion Starter · #3 · Oct 6, 2004

stainless or mild steel then. wasnt sure if cause the aluminum was to be so thick. 1" if it would met dowmn or not.
Kevin

Save

jeffp

· #4 · Oct 6, 2004

Go with a 1/2" spacer in mild steel. HKS sells one for about 20.00 ready to bolt on, but you may want to port match the whole setup to the sixe of the spacer. I would highly recommend port matching the exhaust manifold and the turbo inlet to the spacer.
Just out od curiosity, why didn't you use a stock Nissan exhaust turbine housing?

Save

zippy82

Discussion Starter · #5 · Oct 6, 2004

JeffP- I had James T machine this for me.
I will take your advice port matching the manifold and turbo inlet. thank you

Save

bubbleguinea

· #6 · Oct 6, 2004

the turbo on the left looks new too....on my volvo, its all rusted, but it still works!!!!

Save

Precision Engines

· #7 · Oct 6, 2004

I have the flange for the downpipe, and you can use a standard T3 flange for a spacer.

Save

1 - 7 of 7 Posts
