I can't seem to find in the FSM anything about the boost guage. Mine stopped working right after I installed my reman turbo. I don't even know how the guage is powered(vacuum or wired)???? I'm thinking i disconnected something, but I can't figure it out. Any advice?

thanks Steve

It is electric, no vacuum lines.

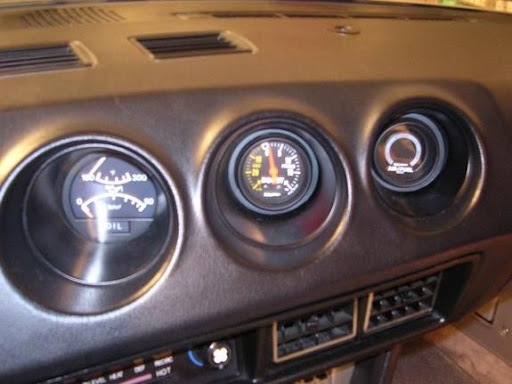

I replaced mine in the stock location with an autometer gauge which uses a vacuum line and shows vacuum as well.

---

2004 Cr-V daily driver
1994 Suzuki Sidekick driver when I'm going to get dirty
83 zxt
Isuzu intercooler, suspension stuff, 16" wheels/tires, just the right amount of rust, mediocre interior, endless supply of curvy roads in WV
Please don't let this be a money pit!

I'm assuming that your Z is an 81 - 83 280zxt. The stock boost gauge is electric. The sending unit is small square black box, attached to the driver's side front inner wheel wheel, near the headlight washer tank. It has a vacuum hose that runs over the the intake manifold.

---

Phil
1981 280zxt
5-speed conversion, 3.9 R200, Eibach springs, Tokico struts, Energy Suspension, K&N CAI, Innovate WB, Cusco Strut Bar, Greddy B Spec II and POV, HKS BOV, 3" mandrel SS exhaust, Magnaflow, Spearco Intercooler, currently 12 psi

quick question,
now that i have a vacuum/boost gauge that runs a direct vacuum line to the intake manifold, do i still need the boost sensor that ran the stock gauge?

---

Marietta GA
1983 280 ZX Turbo @ 10 psi
Lone Wolf Performance intake manifold and throttle body
Taylor High Pro Wires
Greddy Type RZ BOV
Tokico Shocks/Lowering Springs/bushings from MSA
2.5 inch straight pipes
248,XXX miles
[www.zcar.com]

1991 240sx (s13) sr20det swap at 12 psi (about to be 20-22 when i get some bigger injectors)
full skunk2 drift suspension
full Megan racing exhaust
Greddy RZ Blow off valve
JDM sport intercooler
Apexi AFC neo controller
top mount exhaust manifold
Turbonetics 65 Trim
TIAL external wastegate
Turbo timer

No, not needed.

---

Phil
1981 280zxt
5-speed conversion, 3.9 R200, Eibach springs, Tokico struts, Energy Suspension, K&N CAI, Innovate WB, Cusco Strut Bar, Greddy B Spec II and POV, HKS BOV, 3" mandrel SS exhaust, Magnaflow, Spearco Intercooler, currently 12 psi

As said above, get an autometer guage and install in teh dash. You need to run a vacuum line to the back of it and wire in the light.

---

83 280ZXT w/Tokico HP Struts & Springs, U-Bushings, MSA Sway Bars, Strut Tower Bars, CAI w/K&N, 3" Exhaust, B&M Short Throw Shifter, HKS IC, 12psi, GReddy POV & Profec B-II EBC.
